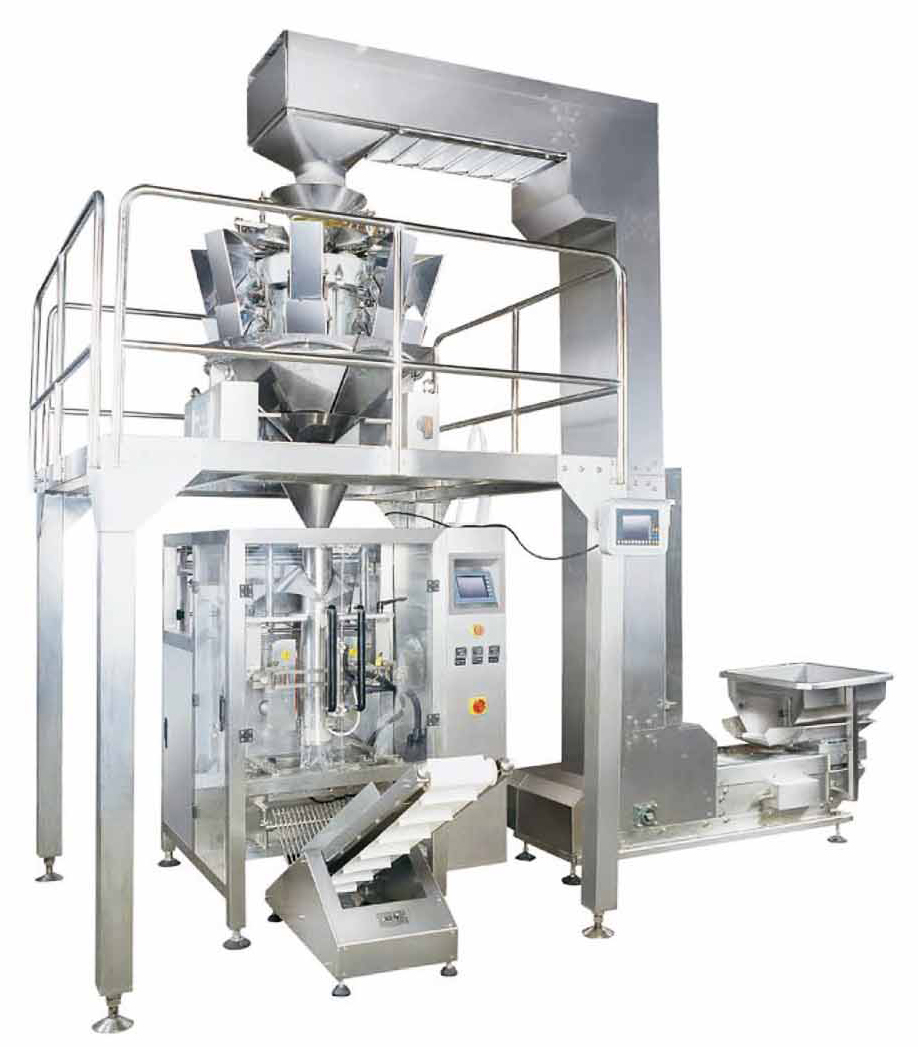

Large Automatic Quantitative Granule Packing Machine
SHORT DESCRIPTION:
Model XY-420 is our Large Automatic Quantitative Granule Packing Machine. It is used for bag packing of random granular materials such as candy, biscuits, melon seeds, roasted seeds and nuts, fruits and vegetables, puffed foods, frozen foods, etc.
Technical Parameters
| Item | Technical standard |
| Model NO. | XY-420 |
| Bag size | L80-300mm X 80-200mm |
| Packing speed | 25-80bags/min |
| Packing material | PET/PE、 OPP/PE 、 Aluminium coated film and other heat-sealable composite materials |
| Power | 3.0Kw |
| Compressed air usage | 0.12m³/min,6-8Kg/cm³ |
| Dimension | L2750 X W1850 X H3800(mm) |
| Weight | About 1600kg |
Performance Characteristics
1. This machine is equipped with safety protection in line with the requirements of enterprise safety management;
2. Chinese and English touch screen display makes the operation intuitive and simple;
3. The intelligent temperature controller is used to make the temperature control accurate, thereby ensuring the seal is beautiful and smooth;
4. The servo motor is controlled by the PLC and the automatic position correction device is adopted in the double or single tension membrane structure. The super display touch screen constitutes the driving control core which maximizes the control accuracy, reliability and intelligence of the whole machine;
5. This machine and metering configuration can automatically complete the whole packing process of metering, feeding, filling and bag making, date printing, inflatable (exhaust) and finished products, and automatically complete the counting;
6. The perfect automatic alarm protection function can help troubleshooting timely and reduce the loss to the minimum; The packaging styles are diverse, there are back sealing,corner inserting, even bags, punching and so on.
Application
Automatically packaging for random granular materials such as candy, biscuits, melon seeds, roasted seeds and nuts, fruits and vegetables, puffed foods, frozen foods, etc.
