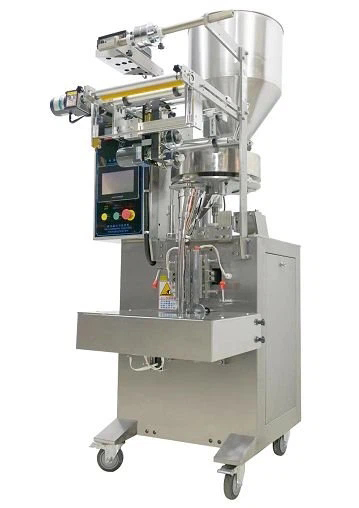

Volumetric Quantitative Granule Packing Machine
Model XY-800L is our Volumetric Quantitative Granule Packing Machine. It is used for bag packing of small granular materials such as granules, puffed foods, melon seeds, white granulated sugar, peanuts and so on.
Technical Parameters
| Item | Technical standard |
| Model NO. | XY-800L |
| Bag size | L80-260mm X 60-160mm |
| Packing speed | 20-50bags/min |
| Packing material | PET/PE、 OPP/PE 、 Aluminium coated film and other heat-sealable composite materials |
| Power | 1.8Kw |
| Dimension | L1100 X W950 X H1900(mm) |
| Weight | About 350kg |
Performance Characteristics
1. The drive-control core of whole machine is composed of an imported programmable controller and a large display touch screen of servomotor, therefore this machine is excellent performance and simple operation;
2. The combination of volumetric quantitative method and packaging machine can complete the measurement, feeding, filling and bag
making, date printing, finished product delivery of the entire packaging process;
3. The perfect automatic alarm protection function can help troubleshooting timely and reduce the loss to the minimum;
4. It adopts intelligent temperature controller to ensure that the seal is beautiful and smooth;
5. The machine can be customized into three-side sealing bag type or back sealed bag type according to customer's needs.
Application
Measurement and packaging for small granular materials such as granules, puffed foods, melon seeds, white granulated sugar, peanuts and so on.
