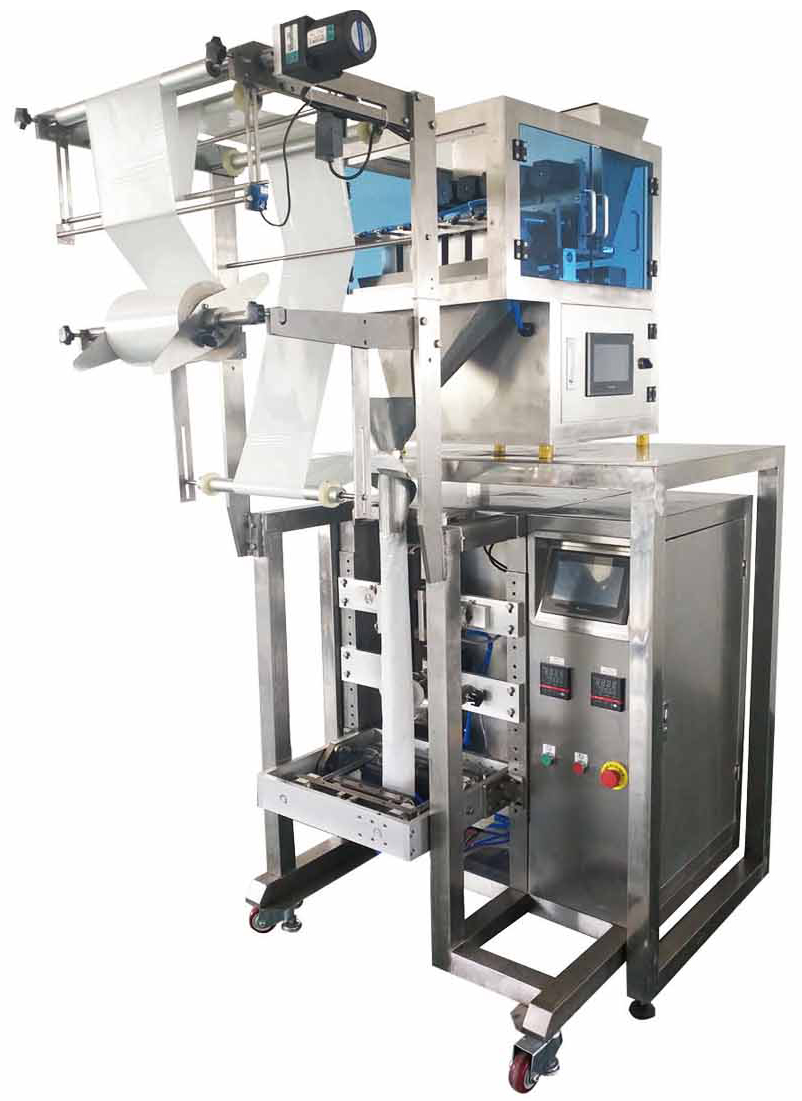

Electronic Weighing Quantitative Granule Packing Machine
Model XY-800D is our Vibration Weighing Quantitative Granule Packing Machine. It is used for bag packing of small granular materials such as CTC milk tea ingredients, mix tea, MSG, chicken essence, sugar, condiment bag, etc.
Technical Parameters
| Item | Technical standard |
| Model NO. | XY-800D |
| Measurement range | 1-100g(Can be customized) |
| Measurement accuracy | 士0.2g(one batcher) |
| Pack speed | 20-45 bags/min |
| Bag size | L 80-260 xW 60-160 (mm) |
| Packing material | PET/PE、 OPP/PE 、 Aluminium coated film and other heat-sealable composite materials |
| Power | 2.5 KW |
| Dimension | L 1100XW 900XH 1950 (mm) |
| Weight | 550Kg |
Performance Characteristics
1. The drive-control core of whole machine is composed of an imported programmable controller and a large display touch screen of servomotor, therefore this machine is excellent performance and simple operation;
2. The combination of electronic scale and packaging machine can complete the measurement, feeding, fling and bag making, date printing, finished product delivery of the entire packaging process;
3. The perfect automatic alarm protection function can help troubleshooting timely and reduce the loss to the minimum;
4. It adopts intelligent temperature controller to ensure that the seal is beautiful and smooth;
5. The machine uses electronic sensor weighing metering to complete feeding for a single variety of materials or a combination of multi-material;
6. The machine can be customized into three-side sealing bag type or back sealed bag type according to customer's needs.
Application

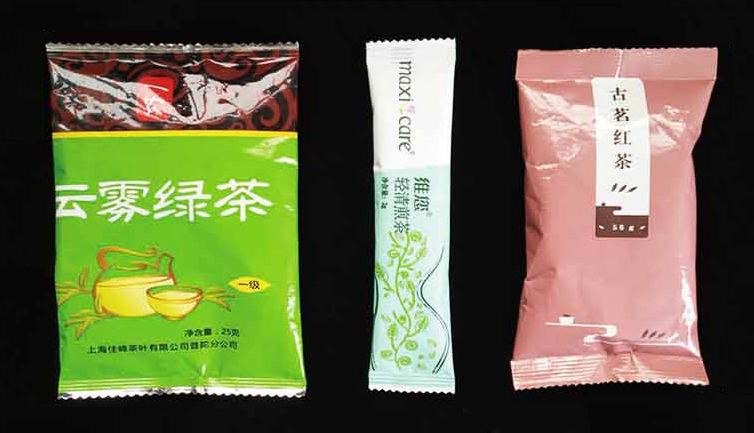

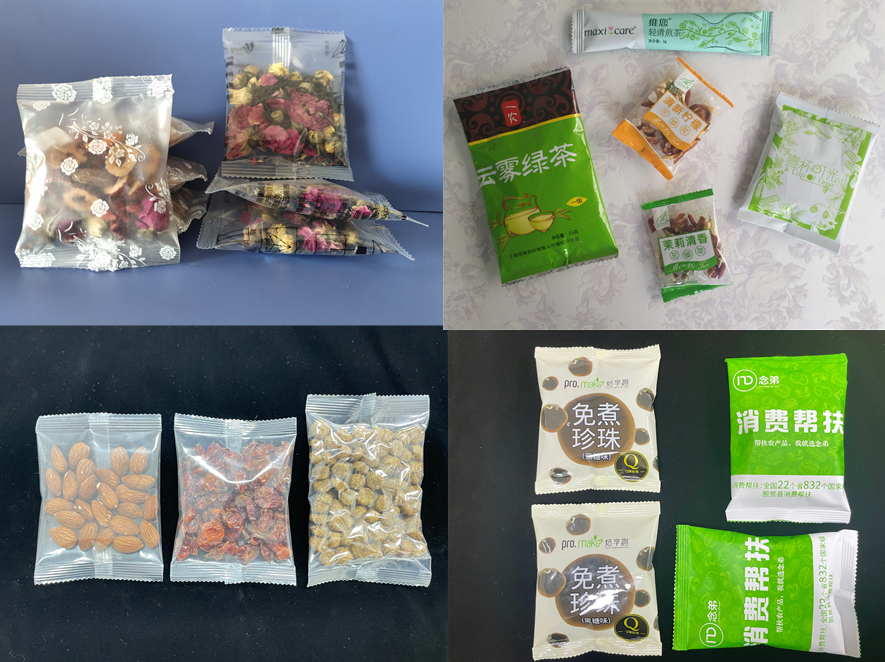

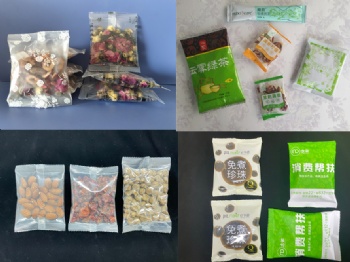

Automatic measurement and packaging for small granular materials such as CTC milk tea ingredients, mix tea, MSG, chicken essence, sugar, condiment bag, etc.
