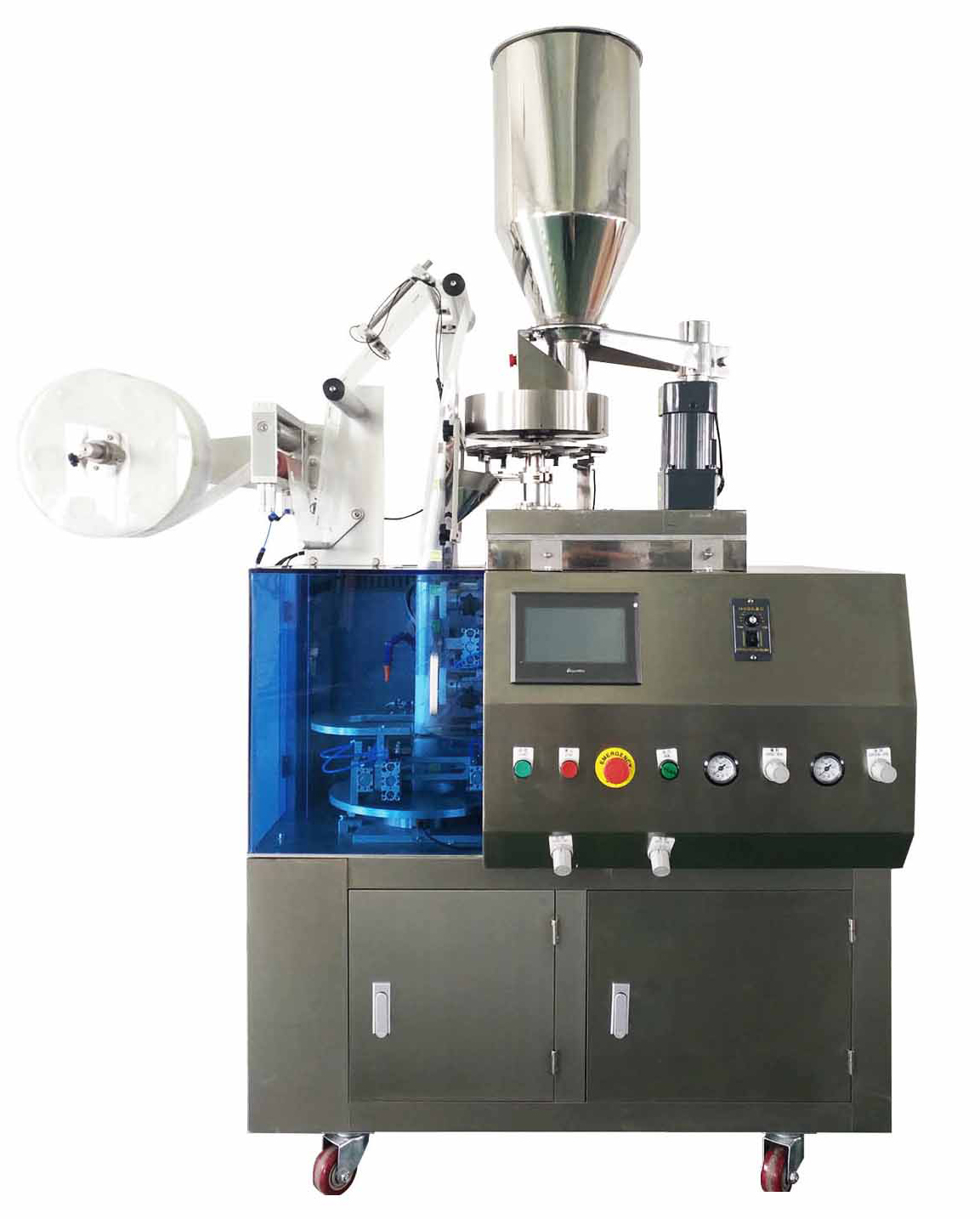

Pyramid tea bags packing machine(Volumetric cup)
Model XY-100SJ/C is our Pyramid(Triangle) Tea Bag Packing Machine With Volumetric Cup Weigher. It is used for the packing of green tea, black tea, scented tea, health tea, Chinese herbal tea, coffee and other broken tea and tea granules quantitative bag packing.
Technical Parameters
| Item | Technical standard |
| Model NO. | XY-100SJ/C |
| Measurement range | 1- 15g |
| Measurement accuracy | 士0.2g |
| Packing speed | 40-65 bags/min |
| Packaging Materials | Nylon materal imported from Japan, non-woven tabrie, 100% biodegradable transparent materials, PET, PLA, etc |
| Measurement method | Volumeric Quantitative Measurement |
| Roll width | 120、140、160 (mm) |
| Bag size | 120mm (48*50 mm) 140mm (56*58 mm) 160mm ( 6568 mm) |
| Roll outer diameter | ≤φ400mm |
| Roll inner diameter | φ76mm |
| Air pressure | ≥0.6Mpa(The gas will be suplied by the buyer) |
| Control person | 1 |
| Power | 1 Kw |
| Dimension | L 1250 x W 800 x H 1800(mm) |
| Weight | 500Kg |
Performance Characteristics
1. By ultrasonic sealing and cutting.the machine can produce a pyramid(triangle) tea bag with a beautiful bag shape and strong sealing;
2. It uses volumetric automatic quantitative metering, and complete automatic blanking packaging process cooperating with packing machine;
3. It is controlled by PLC and touch screen display which makes the performance more stable and easier to be operated;
4. It is equipped with SMC pneumatic components and Schneider electric appliances to extend the life of the machine;
5. The integration of machine and gas makes the replacement of data without stopping or shutdown;
6. The Packing capacity is 2400-3600 bags/hour;
7. The switch of the hanging label tea bag and the wireless label tea bag can be completed by changing the packaging material;
8. The bag shape of pyramid(triangle) sealing bag and flat(rectangle) back sealing bag can be switched to each other by one-key operation.

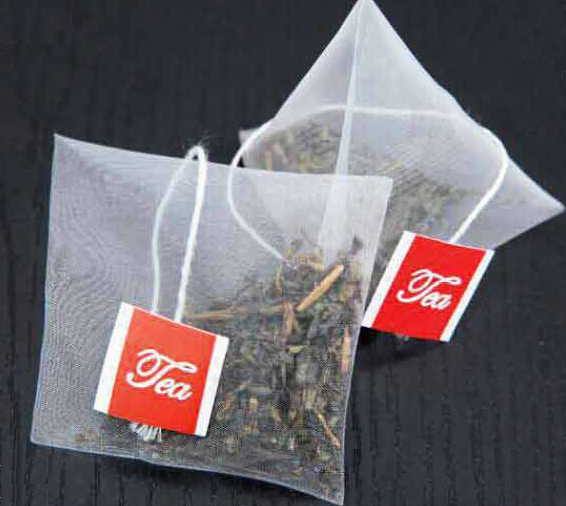

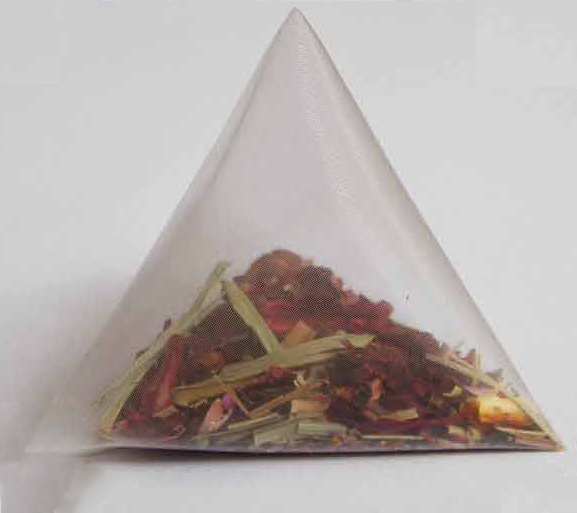

The Advantages of Pyramid Tea Bag Packing
1. There is enough space for the original tea, herbal tea, ginseng tea, fruit tea and so on to fully spread and maintain the original flavor and fragrance of tea after hot water brewing;
2. The pyramid(triangle) tea bag can be repeated brew and long brewing without damaging the tea bag;
3. Transparent packaging materials enable the consumers to clearly see the raw materials of tea and make them feel at ease;
4. Filter material is safe and hygienic through third party food safety inspection.
Application
Green tea, black tea, scented tea, health tea, Chinese herbal tea, coffee and other broken tea and tea granules quantitative bag packaging.
