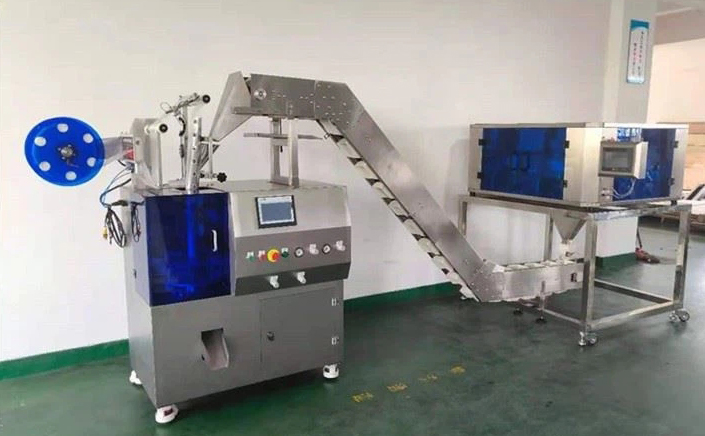

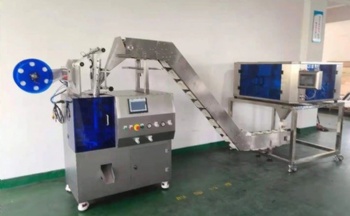

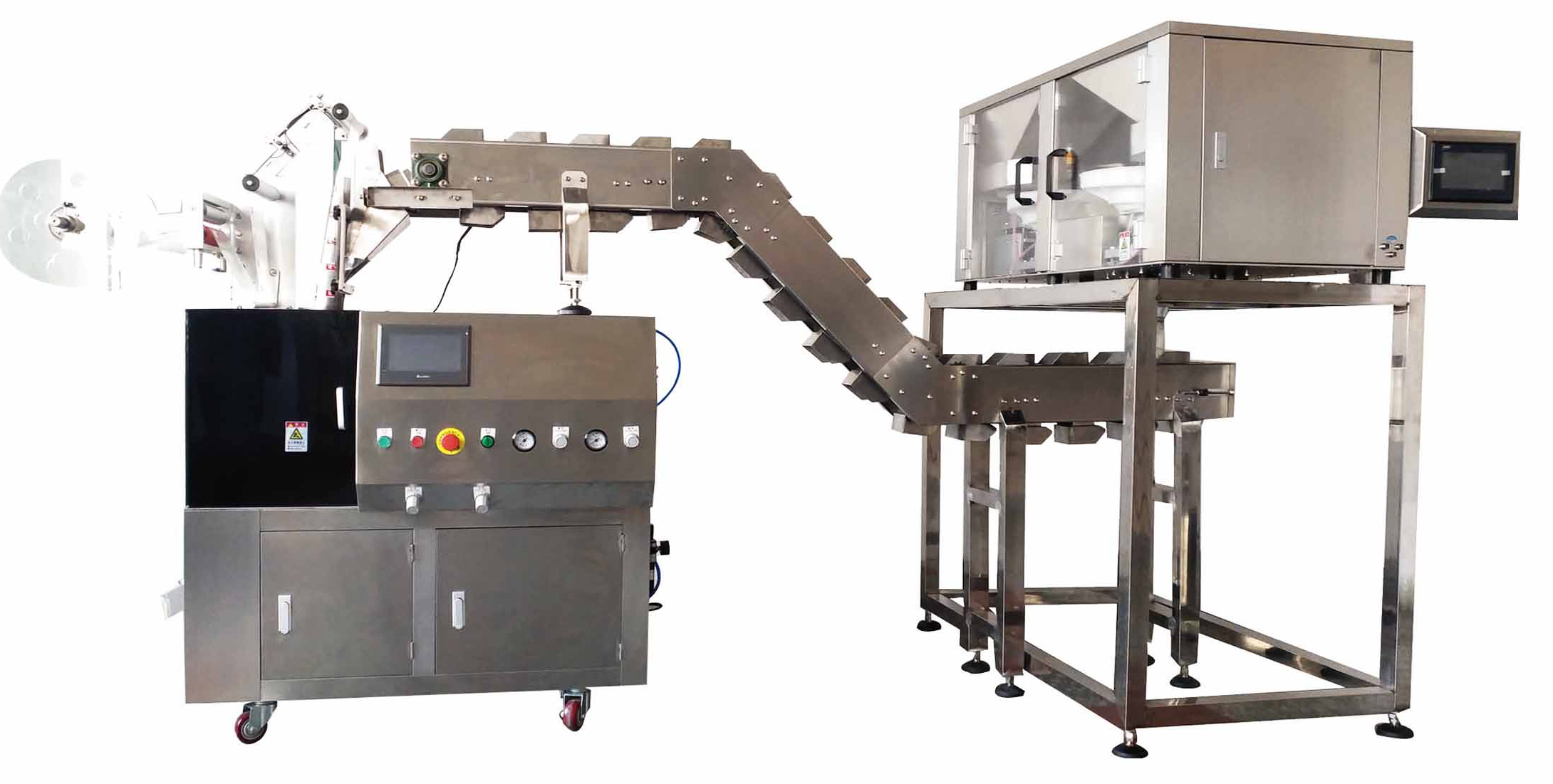

Pyramid tea bags packing machine(Vibration Feeder)
SHORT DESCRIPTION:
Model XY-100SJ/4D & XY-100SJ/6D are our Pyramid(Triangle) Tea Bag Packing machine With Vibration Weigher. It is used for bag packing of black tea, green tea, Chinese herbal tea, fruit tea, health tea, formulation tea, Babao tea, Chinese medicine pieces and so on.
Technical Parameters
| Item | Technical standard | |
| Model NO. | XY-100SJ/4D | XY-100SJ/6D |
| Measurement range | 1- 10g | |
| Measurement accuracy | 士0.2g | |
| Packing speed | 30-60 bags/min | 40-65 bags/min |
| Packaging Materials | Nylon materal imported from Japan, non-woven tabrie, 100% biodegradable transparent materials, PET, PLA, etc | |
| Measurement method | 4 weighing batchers | 6 weighing batchers |
| Roll width | 120、140、160 (mm) | |
| Bag size | 120mm (48*50 mm) 、140mm (56*58 mm) 、160mm ( 65*68 mm) | |
| Roll outer diameter | ≤φ400mm | |
| Roll inner diameter | φ76mm | |
| Air pressure | ≥0.6Mpa(The gas will be suplied by the buyer) | |
| Control person | 1 | |
| Power | 2.8 Kw | |
| Dimension | L 3500 x W 1600 x H 1600(mm) | |
| Weight | 800Kg | 900kg |
Performance Characteristics
1. By ultrasonic traceless sealing and cutting, the machine produce a pyramid(triangle) tea bag with beautiful bag shape and strong sealing;
2. The automatic quantitative measurement method of electronic scale is convenient for changing the specifications and types of packing;
3. It is controlled by PLC and touchscreen display which makes the performance more stable and easier to operate;
4. The way of feeding adopts the spiral vibration to minimize the damage to the stripe of original leaf tea;
5. The Packing capacity for XY-10SJ/4D is 2100-2400 bags/hour; for XY-100SJ/6D is 2400-3000 bags/hour;
6. The bag shape of pyramid(triangle) sealing bag and flat(rectangle) back sealing bag can be switched to each other by one-key operation;
7. The change between the hanging label tea bag and the wireless label tea bag can be completed only by changing the Packing material.
The Advantages of Pyramid Tea Bag Packing
1. There is enough space for the original tea, herbal tea, ginseng tea, fruit tea and so on to fully spread and maintain the original flavor and
fragrance of tea after hot water brewing;
2. The pyramid(triangle) tea bag can be repeated brew and long brewing without damaging the tea bag;
3. Transparent packing materials enable the consumers to clearly see the raw materials of tea and make them feel at ease;
4. Filter material is safe and hygienic through third party food safety inspection.
Application
The automatic bag packing for black tea, green tea, Chinese herbal tea, fruit tea, health tea, formulation tea, Babao tea, Chinese medicine pieces and so on.
