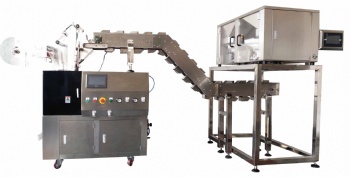

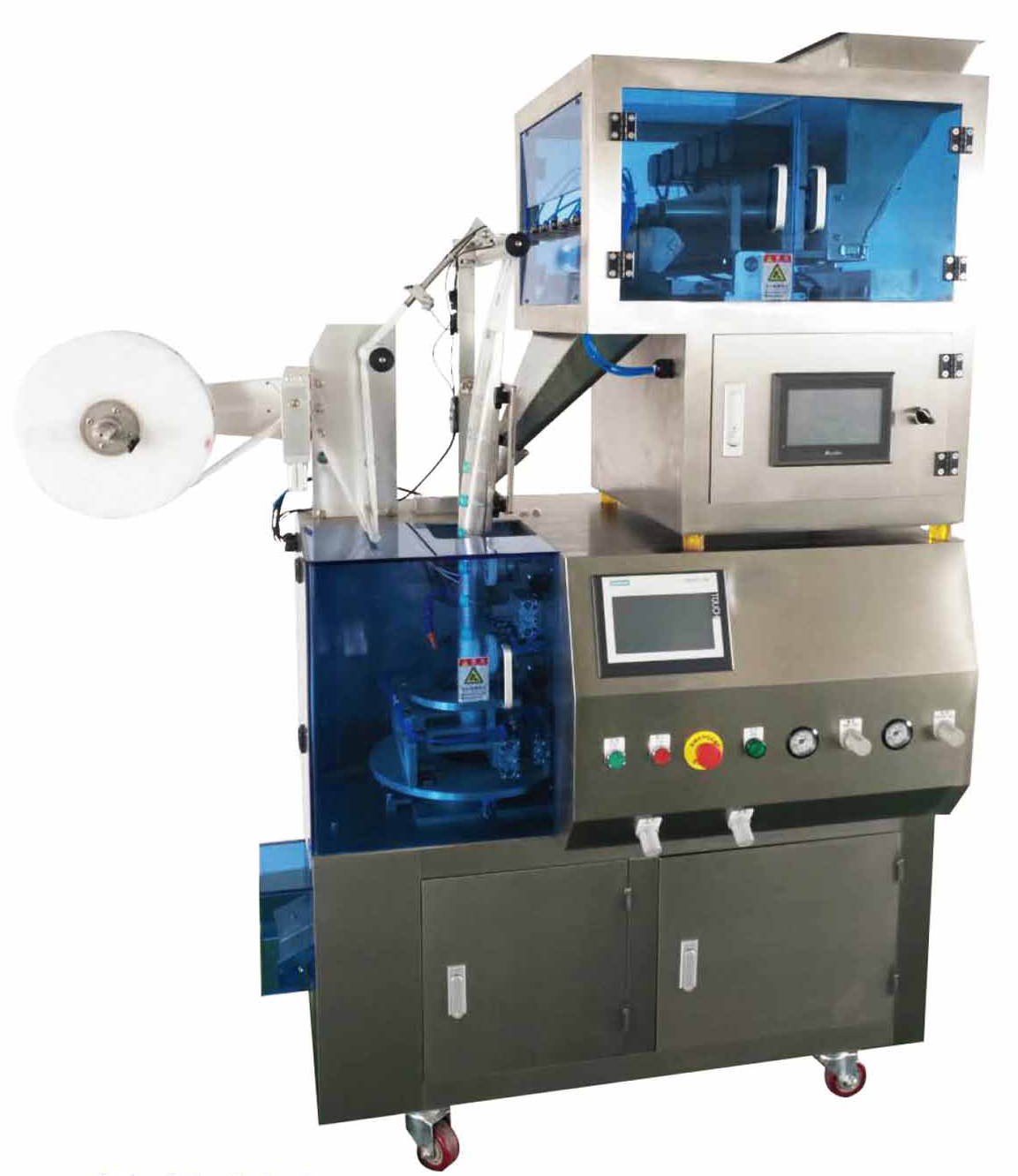

Pyramid tea bags packing machine(Electronic scale)
SHORT DESCRIPTION:
Model XY-100SJ/4T & XY-100SJ/6T are our Pyramid(Triangle) Tea Bag Packing machine With Electronic Weigher. It is used for green tea, black tea, scented tea,fruit tea,assorted Chinese herbal tea, health tea, Chinese herbal tea, coffee and other broken tea and short strip material quantitative bag packing.
Technical Parameters
| Item | Technical standard | |
| Model NO. | XY-100SJ/4T | XY-100SJ/6T |
| Measurement range | 1- 10g | |
| Measurement accuracy | 士0.15g | |
| Packing speed | 35-60 bags/min | 45-70 bags/min |
| Packaging Materials | Nylon materal imported from Japan, non-woven tabrie, 100% biodegradable transparent materials, PET, PLA, etc | |
| Measurement method | 4 weighing batchers | 6 weighing batchers |
| Roll width | 120、140、160 (mm) | |
| Bag size | 120mm (48*50 mm)、 140mm (56*58 mm)、 160mm ( 65*68 mm) | |
| Roll outer diameter | ≤φ400mm | |
| Roll inner diameter | φ76mm | |
| Air pressure | ≥0.6Mpa(The gas will be suplied by the buyer) | |
| Control person | 1 | |
| Power | 2.8 Kw | |
| Dimension | L 1250 x W 800 x H 1800(mm) | |
| Weight | 500Kg | 600kg |
Performance Characteristics
1.By ultrasonic sealing and cutting,the machine can produce a pyramid(triangle) tea bag with a beautiful bag shape and strong sealing.
2.It adopts the automatic weighing by electronic scales. It adjusts the packing weight arbitrarily and facilitate the replacement of packing
materials.
3.It is controlled by PLC and touch screen display which makes the performance more stable and easier to operate.
4.It is equipped with SMC pneumatic components and Schneider electric appliances to extend the life of the machine.
5.The integration of machine and gas makes the replacement of data without stopping or shutdown.
6.The machine uses high-precision electronic sensing measurement to make the packing accuracy more precise.
7.The packing capacity is 2400-4200 bags 1 hour,
8.The change of the hanging label tea bag and the wireless label tea bag can be completed only by changing the packing material.
9.The bag shape of pyramid(triangle) sealing bag and flat(rectangle) back sealing bag can be switched to each other by one-key operation.

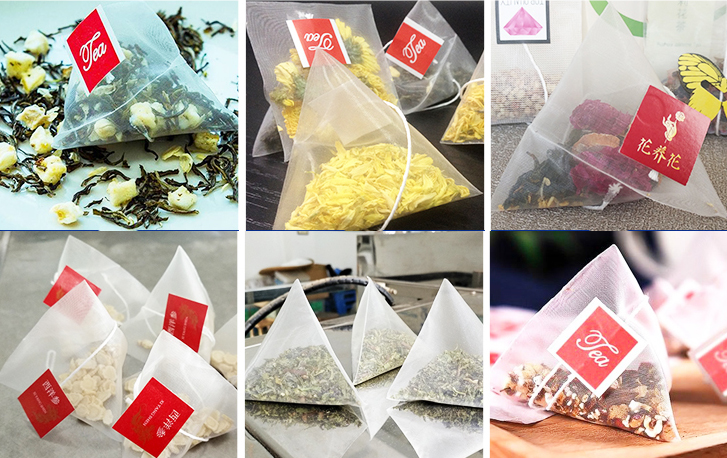

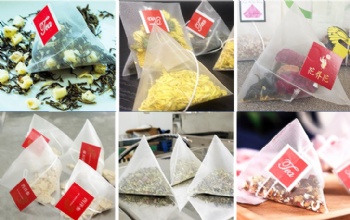

The Advantages of Pyramid Tea Bag Packing
1. There is enough space for the original tea, herbal tea, ginseng tea, fruit tea and so on to fully spread and maintain the original flavor and
fragrance of tea after hot water brewing;
2. The pyramid(triangle) tea bag can be repeated brew and long brewing without damaging the tea bag;
3. Transparent packing materials enable the consumers to clearly see the raw materials of tea and make them feel at ease;
4. Filter material is safe and hygienic through third party food safety inspection.
