Liquid Packing And Filling Machine

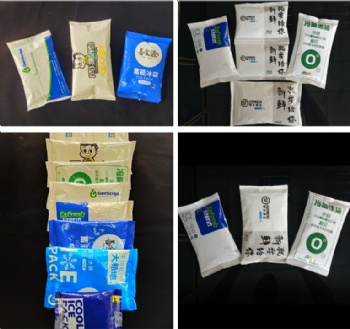

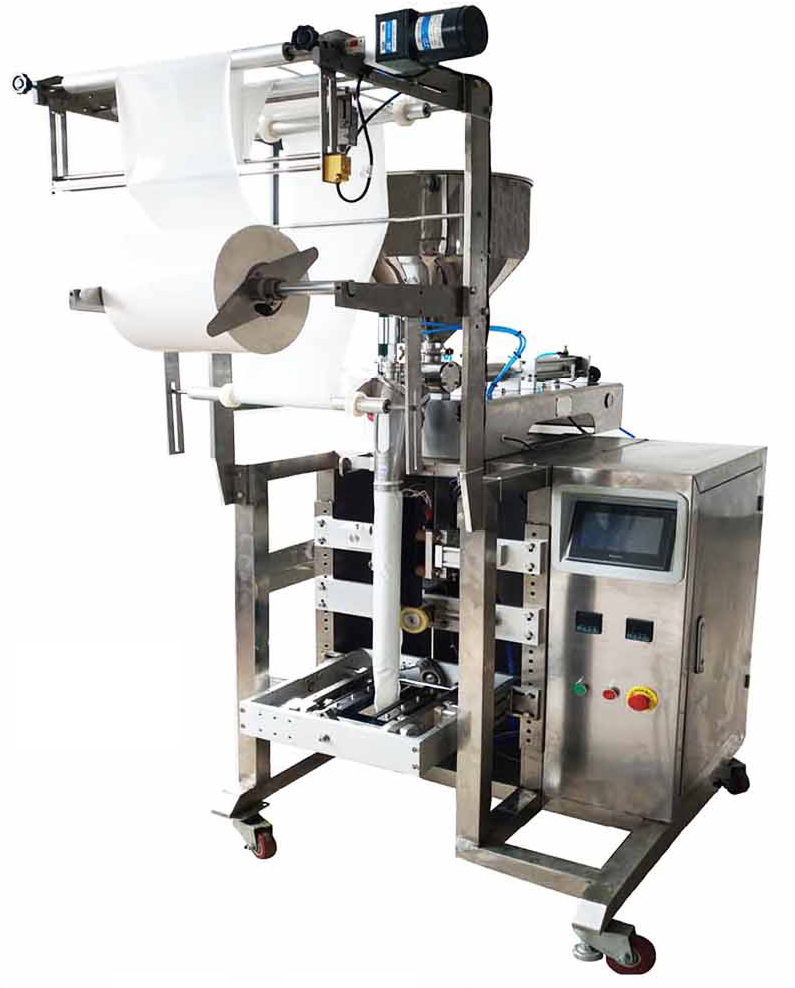

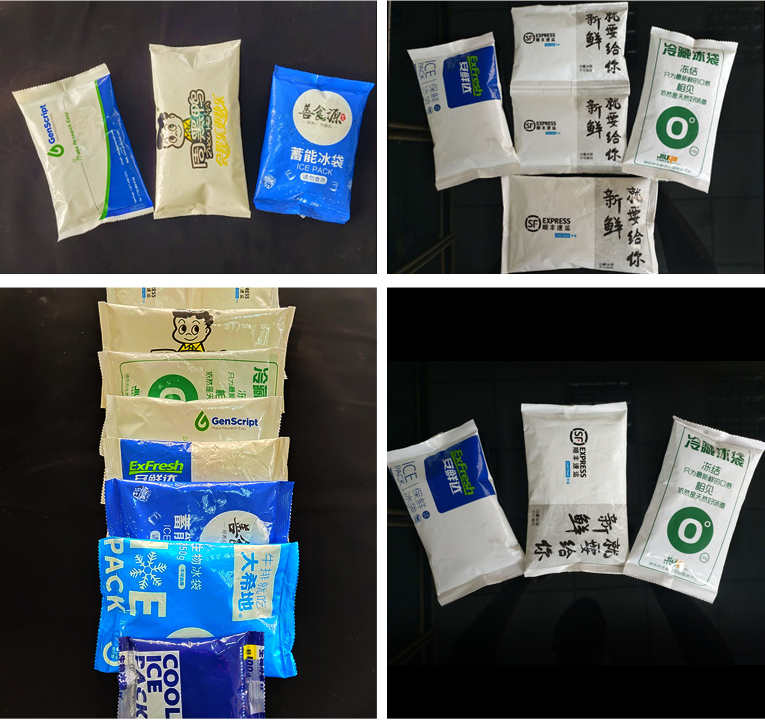

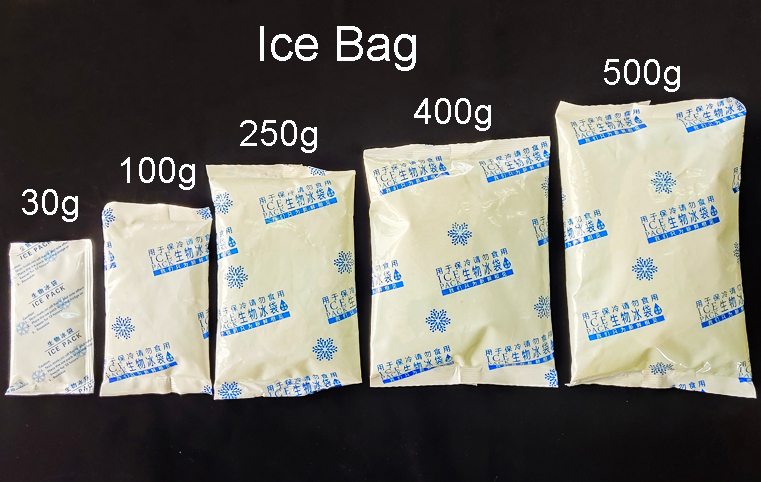

Model XY-800Y is our Liquid Packing Machine. It is used for bag packing of fast hot water bags, biological ice bags, medical cooling ice bags, food and beverage distribution soup bags and other liquid bags.
Technical Parameters
| Item | Technical standard |
| Model NO. | XY-800Y |
| Bag size | L100 - 260mm X W 80 - 160mm |
| Packing speed | 20-40bags/min |
| Measurement range | 100-1000g |
| Packing material | PET/PE、 OPP/PE 、 Aluminium coated film and other heat-sealable composite materials |
| Power | 1.8Kw |
| Weight | 350kg |
| Dimension | L1350 X W900 X H1800(mm) |
Performance Characteristics
1. The drive-control core of whole machine is composed of the touch control programmable operation and a large display touch screen of servomotor, therefore this machine is excellent performance and simple operation;
2. The machine combines with the filling machine can complete the measurement, feeding, Filling bag, date printing, finished product delivery of the entire packaging process;
3. The perfect automatic alarm protection function can help troubleshooting timely and reduce the loss to the minimum;
4. The intelligent temperature controller is used to ensure the seal is beautiful and smooth. And the anti-sticking treatment was made on the cutter point;
5. The filling and feeding system adopts a professional anti leakage and interception mode, thereby avoiding the phenomenon of poor sealing;
6. The whole machine is made of SUS304 food grade material which food safety is assured and reliable;
7. According to customer requirements, we can customize the feeding system so that labor costs can be saved.
