Pyramid/Flat Tea Bag Inner and Outer Bag Packing Machine
SHORT DESCRIPTION:
Model XY-100SJ/4T-TLW & XY-100SJ/6T-TLW are our Pyramid Tea Bag & Envelop Bag Packing Machine. It is used for bag packing of black tea, green tea, Chinese herbal tea, fruit tea, health tea, formulation tea, Babao tea, Chinese medicine pieces and so on.
Technical Parameters
| Item | Technical standard | |
| Model NO. | XY-100SJ/4T-TLW | XY-100SJ/6T-TLW |
| Measurement range | 1- 10g | |
| Measurement accuracy | 士0.15g | |
| Packing speed | 35-45 bags/min | |
| Measurement method | 4 weighing batchers | 6 weighing batchers |
| Packing method | Inner bag:Ultrasonic three sides traceless sealing packing Ourter bag: Three sides or back heat sealing packing with composite material | |
| Packing size | Inner bag : 120mm (48* 50 mm) Outer bag : ≥ 80*90 mm Inner bag : 140mm (58* 60 mm) Outer bag : ≥ 80*100 mm Inner bag : 160mm ( 68* 70 mm) Outer bag :≥ 90*110 mm | |
| Packaging Materials | Inner bag: Nylon material imported from Japan, non-woven fabric, 100% biodegradable transparent materials, PET,PLA, etc Outer bag: Heat sealing composite material | |
| Material specification | Innerbag : 120 mm、140 mm、160mm Outerbag: ≥140 mm | |
| Roll width | 120、140、160 (mm) | |
| Bag size | 120mm (48*50 mm) 、140mm (56*58 mm) 、160mm ( 65*68 mm) | |
| Unwinding quantity | 2 Rolls | |
| Unwinding diameter | ≤φ400mm | |
| Roll inner diameter | φ76mm | |
| Air pressure | ≥1.2Mpa(The gas will be suplied by the buyer) | |
| Control person | 1 | |
| Power | 3.2 Kw | |
| Dimension | Inner bag machine: L 1600 * W 800 * H 1900 mm Outer bag machine: L 1100 * W 950 * H 1620 mm | |
| Weight | 900Kg | |
Performance Characteristics

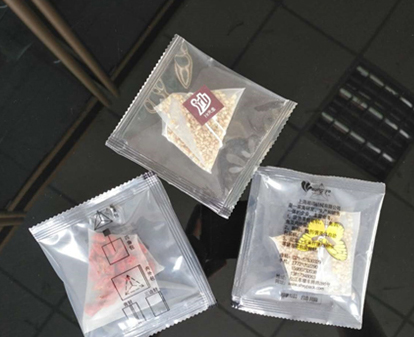

1. By ultrasonic traceless sealing and cutting, the machine produce a pyramid(triangle) tea bag with a beautiful bag shape and strong sealing;
2. Automatic quantitative measurement method is convenient for changing the specifications and types of packing;
3. It is controlled by PLC and touch screen display which makes the performance more stable and easier to operate;
4. It is equipped with SMC pneumatic components and Schneider electric appliances to extend the life of the machine;
5. The inner bag packaging capacity is 2400-3600 bags/hour, the inner and outer bag packing capacity is 2100-2700 bags/hour,

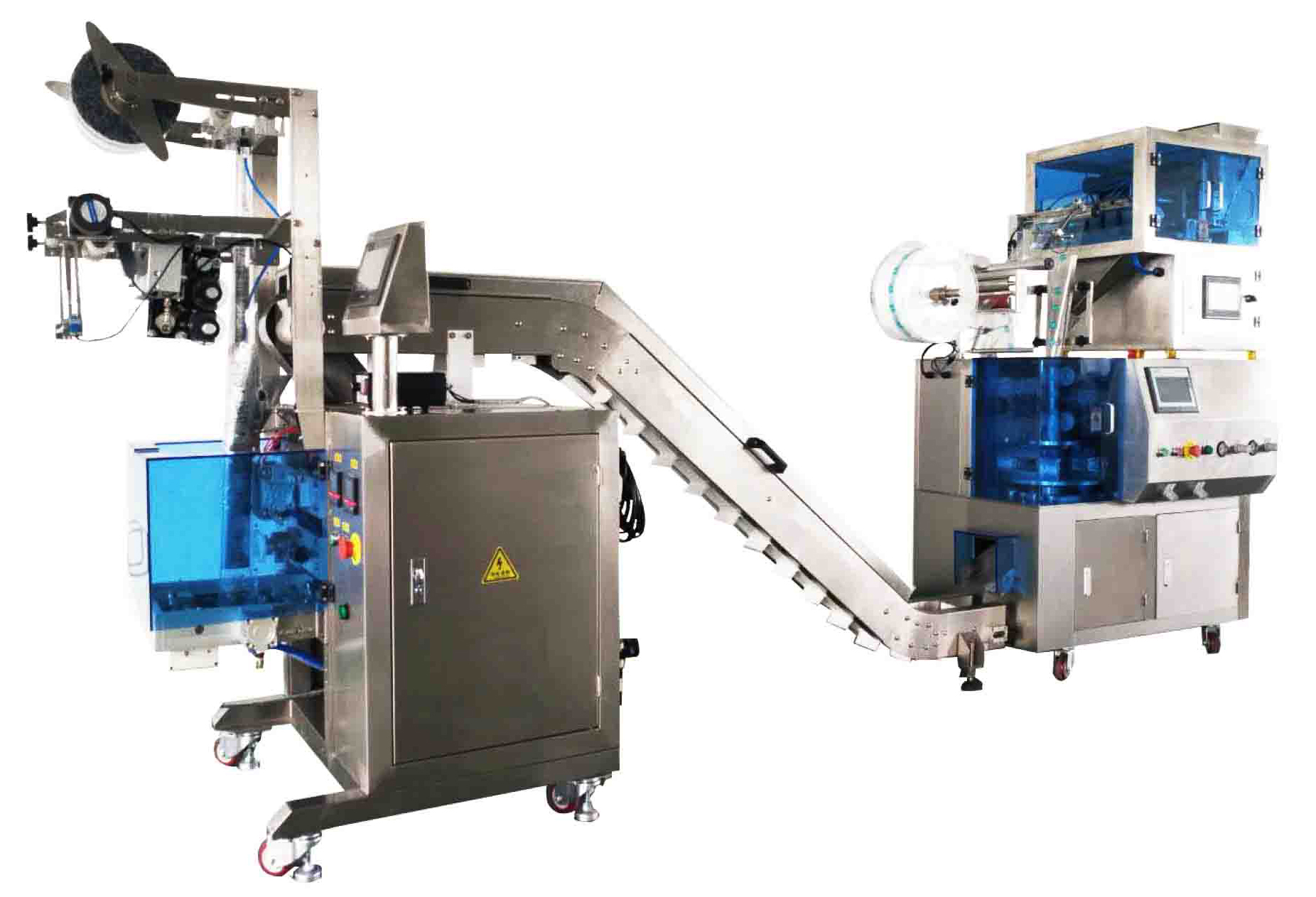

6. The pyramid packing machine can be used flexibly and has strong practicability. The inner bag packing machine can be used together with
the outer bag packing machine or used separately;

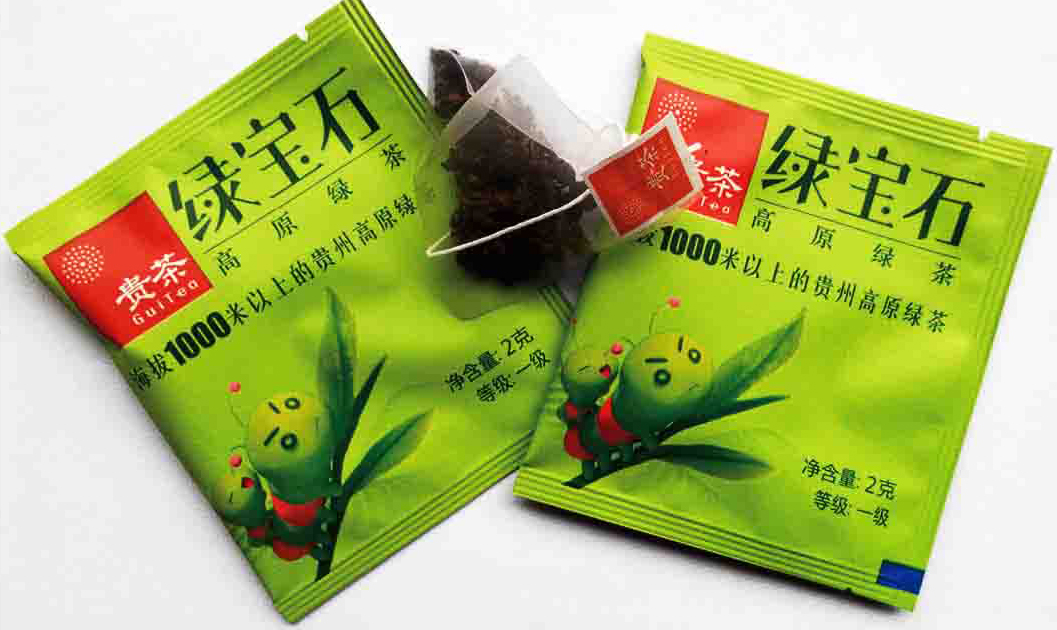

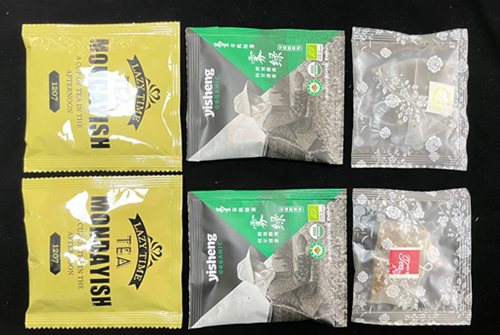

7. The outer bag is used heat sealing composite material, and the picture can be customized according to customer requirements.
It can automatically track the positioning sign and cut off;
8. According to customer requirements, nitrogen filling devices can be installed to prolong the shelf life and freshness of products;
9. The production date printing device can be configured to make production more standardized and safer for the consumers.
Application
The automatic bag packing for black tea, green tea, Chinese herbal tea, fruit tea, health tea, formulation tea, Babao tea, Chinese medicine pieces and so on.
